Bridge plug setting tools are devices used in the oil and gas industry to securely install a temporary plug, or bridge plug, inside a wellbore for isolation purposes.
They work by being lowered into the well with the bridge plug attached, and then they apply a force (either mechanically or hydraulically) to compress the plug, causing it to expand and grip the casing wall.
Superior Quality Control
Professional Technical Support
Vigor is your Technical Solution Provider
Vigor is your High-Efficient Supply Chain Team
Vigor Electric Setting Tool (VEST)
Pro-Set Electro-hydraulic Setting Tool
Vigor Wireline Setting Tool (VWST)
Vigor Hydraulic Setting Tool (VHST)
Vigor Electric Setting Tool (VEST)
The Vigor Electric Setting Tool (VEST) is a kind of pure electric setting tool. The VEST adopts a pure electric drive mode composed of an electric motor, a gearbox and a heavy-duty roller screw. It doesn't require explosive or hydraulic oil, and is safer and more environment friendly. The VEST can provide a reliable power source for operations such as bridge plug setting, punch of tube and casing, casing patching and fishing.
- Non-explosive: By adopting electric drive, the explosive device drive mode is completely abandoned, avoiding many management and control links such as transportation, storage, and use of explosive devices, greatly improving the convenience and safety of operation in the field.
- Maintenance-free: Adopting a lifetime maintenance free design, the entire use process does not require maintenance, nor does it require rebuilding the setting tool. It greatly reduces the labor intensity of construction personnel and shortens the production preparation time of tools to less than 10 minutes.
- Digitization: During the construction process, VEST can display important parameters such as working current, voltage, tension, and stroke in real-time. Based on these parameters, engineers can accurately determine the status and characteristic data of loads (such as bridge plugs or packers), thereby achieving big data analysis and providing data support for continuous improvement of loads. Furthermore, based on these data, the self- diagnosis function of VEST can be achieved, which can provide a more accurate understanding of the tool's operational status.
- Wireline conveyed, no need much maintenance after a setting job in the field.
- With less accessories, and less operation personnel, cost down for labor in the field.
- Adopted full hydraulic power structure, easy to operate, lower rate of trouble shootings.
- Pressure balancing system design, the pull force will not be effected by the well depth and mud density.
- The max setting force is no less than 350KN, large stroke, compatible to different type of bridge plugs.
- Real-time monitoring and record setting force, setting stroke, and complete setting process recording.
- New Releasable Unit design: When the tools cannot be retrieved from bridge plug, the releasable unit can drop the bridge plug to prevent from downhole accident.
Vigor Wireline Setting Tool (VWST)
The Vigor Wireline Setting Tool (VWST) provide dynamic force which is used to set Bridge Plugs, Production Packer or Cement Retainers. The gradual burning of a high temperature power charge which produces high-pressure gas, creates the force to push an o-ring sealed bottom piston.
The piston applies the necessary stroke and tension to set and release from the equipment. Pressure balanced top and bottom pistons, eliminates pre-setting of bridge plugs, retainers, and packers. Short, compact structure for easy running. Easy maintenance, assembly, bleeding, and disassembly
- Real-time setting indication: The operator can activate the VWST at setup depth and monitor the entire setup process in real time.
- Low maintenance and ease of use: The tool is designed for low maintenance and ease of use, eliminating the need to open and reassemble the tool after each run.
- Pressure balancing system: The pressure equalization system prevents pre-setting the device and reduces the risk of tool pre-setting due to high hydrostatic pressure.
- High-pressure rated tools: VWST provides high pressure rated tools for high pressure operating environments.
- Multiple setting modules: Basic tool operation with optional setup modules to choose from for different setup force requirements.
- High temperature and high pressure ratings: Tools are temperature and pressure rated for high temperature and high pressure well conditions.
- Electronic wireline compatibility: The VWST is electronic wireline compatible and provides real-time downhole temperature and pressure feedback.
- Suitable for a wide range of well conditions: The tool is suitable for both vertical and horizontal well applications and is less sensitive to downhole temperature variations.
- Rapid redeployment: The VWST can be quickly redeployed without reassembly, saving operating time.

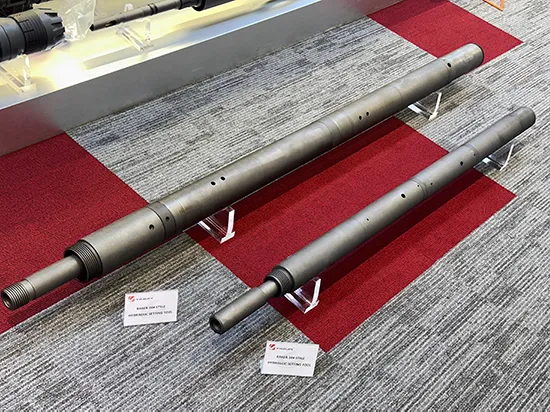

The Vigor Hydraulic Setting Tools (VHST) are used to run and set packers, bridge plugs and cement retainers on a work string, production tubing or coiled tubing.
The setting tool translates hydraulic pressure, applied to the tubing, to a force transmitted through the adapter kit to the slips and pack off the sealing element of these tools. It allows setting in high-angle or deviated wells, where it is often difficult to use wireline equipment.
- Flexible activation methods: ball drop or circulating subenable controlled packer setting
- High setting forces: up to 60,000 lbs to securely set packers in deviated or horizontal wells
- Modular components: customize for well parameters and equipment
- Automatic fill-and-drain: prevents premature setting and stuck tools, which enables the work string to fill with well fluids as tools are run and to drain during retrieval, preventing the pulling of a wet string
- Rugged construction: withstands high shock loads in harsh well environments
- The VHST accepts common wireline adapter kits, enabling it to set all Weatherford permanent and retrievable sealbore packers.
- The VHST enables the well to be circulated before the packer is set, preventing debris accumulation.
- The stackable piston arrangement enables the setting pressure to be varied to the output force of the well.
