VIGOR Hydraulic Setting Tool
Vigor’s hydraulic setting tools are used to run and set packers, bridge plugs and cement retainers on a work string, production tubing or coiled tubing.
The setting tool translates hydraulic pressure, applied to the tubing, to a force transmitted through the adapter kit to the slips and pack off the sealing element of these tools.
It allows setting in high-angle or deviated wells, where it is often difficult to use wireline equipment.
Description
China Vigor Drilling Oil Tools And Equipment Co., Ltd. is one of the most professional manufacturers and suppliers of vigor hydraulic setting tool in China, featured by competitive price and fast delivery. Welcome to buy high quality vigor hydraulic setting tool in stock here from our factory.
- VIGOR Hydraulic Setting Tool Manufacturer for Efficient and Reliable Downhole Operations
- VIGOR Hydraulic Setting Tool (HST) provides a flexible and reliable solution for setting packers, bridge plugs, and cement retainers in complex well environments. With an advanced modular design, this 200-pound tool can generate up to 60,000 lbs of setting force using hydraulic pressure to activate packer slips and sealing elements.
The technical parameters of the products provided by VIGOR are as follows:
Technical Parameter
|
Part umber |
Model |
Type |
Tool O.D. |
Piston Area |
Setting Force(Max.) |
Tension (Max.) |
Length |
Top Thread |
|
VHST-001-0A |
SHSG |
1-11/16 |
1.72 |
2.238 |
15,000 |
25,000 |
66.88 |
1"AMMT |
|
VHST-002-1B |
SHSB |
#10 |
3.125 |
6.68 |
50,000 |
60,000 |
58.47 |
2-3/8"-8RDEU |
|
VHST-003-2B |
SHSB |
#20 |
3-7/8 |
11.85 |
60,000 |
78,000 |
59.5 |
2-7/8"-8RDEU |
|
VHST-003-3C |
SHSG |
G0 |
3-7/8 |
11.85 |
60,000 |
78,000 |
73.3 |
2-7/8"-8RD EU |
|
VHST-005-4D |
SHSB-1 |
#20/G0 |
3-7/8 |
15 |
60,000 |
70,000 |
49.07 |
2-7/8"-8RD EU |
Key Benefits
① Flexible activation methods: ball drop or circulating subenable controlled packer setting
② High setting forces: up to 60,000 lbs to securely set packers in deviated or horizontal wells
③ Modular components: customize for well parameters and equipment
④ Automatic fill-and-drain: prevents premature setting and stuck tools, which enables the work string to fill with well fluids astools are run and to drain during retrieval, preventing the pulling of a wet string
⑤ Rugged construction: withstands high shock loads in harsh well environments
⑥ The HST accepts common wireline adapter kits, enabling it to set all Weatherfordpermanent and retrievable sealbore packers.
⑦ The HST enables the well to be circulated before the packer is set, preventingdebris accumulation.
⑧ The stackable piston arrangement enables the setting pressure to be varied to theoutput force of the well.
Components of HST
① Hydro-set Adapter Kit: Connects the setting tool to the packer for force transmission.
② Setting Sleeve: Transfers hydraulic force to the packer to move slips and elements into the set position.
③ Hydraulic Setting Module: Uses stacked pistons to intensify and regulate hydraulic pressure for controlled packer setting.
This modular configuration enables customized rig-ups for different downhole equipment and well conditions. The HST can be deployed on tubing, production tubing, or coiled tubing for versatile conveyance options.
How Does It Work?
VIGOR Hydraulic Setting Tool utilizes hydraulic pressure delivered through the tubing string to generate axial force for the packer setting. Either a drop ball or flow-activated circulating sub can be used to direct pressure to the hydraulic pistons for force intensification. This amplified force is then transferred through the setting sleeve to the adapter kit, which pushes the packer slips and sealing element into position against the casing wall. The hydraulic control system automatically fills and drains the string for efficiency.
Products Description
VIGOR HST enables reliable setting of packers, bridge plugs, and cement retainers in scenarios where wireline cannot be used, including:
① Highly deviated or horizontal wells, the heavy-duty HST construction enables the packer assembly to be pushed into place in high-angle and horizontal wells, enabling the packer to be set where wireline deployment is difficult or impractical.
② Deep, high-temperature environments
③ Wells with irregular casing profiles
It can also be used as a versatile alternative to wireline in vertical wells when appropriate. Key applications include zoning, isolating production intervals, or staging frac treatments.
With capabilities to generate high-setting forces in even the most complex well environments, the VIGOR Hydraulic Setting Tool is an ideal solution for efficient and reliable packer deployment. Its modular design provides flexibility while rugged construction withstands downhole shocks and vibrations.
As a professional manufacturer and supplier, VIGOR maintains an extensive inventory that can meet the requirements of large and urgent orders from clients. and provides fast delivery with stringent quality control. Our Packages are tight and convenient for storage, we make sure the VIGOR Hydraulic Setting Tool safely reaches client fields even after thousands of kilometers long trip transportation by sea and by truck, Contact the VIGOR team today to discuss how our HST can enable optimized operations on your next well project.
Products Description

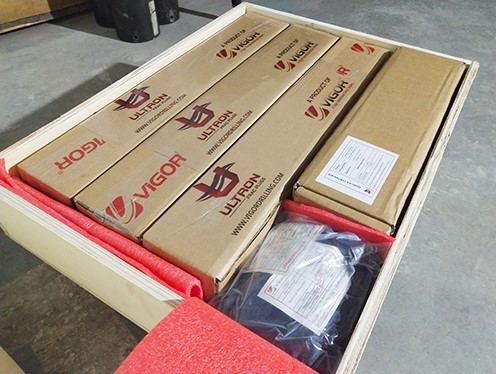

Our Packages are tight and convenientfor storage, we make sure VIGOR Hydraulic Setting Tool safely reach client fields even after thousands of kilometers long trip transportation by sea and by truck, we also have our inventory which can meet the requirements of large and urgent orders from client.
Vigor is committed to researching, developing, manufacturing, and selling high-tech downhole tools and equipment. Our focus is on utilizing advanced technologies to help our customers reduce the costs of oil and gas exploration, production, and completion while keeping up with the development of the world's energy industry.
VIGOR'S MISSION
We continue to promote the development of the world's energy industry with high quality and innovative models.
VIGOR'S VISION
Become a century-old enterprise in the energy industry, serving 1000 leading enterprises in the energy industry worldwide.
VIGOR'S VALUES
Team spirit, innovation and change, focus, integrity, and live our dream true!
VIGOR's products are used in 60+ countries
3500+ International projects experience
Qualified vendor of 8+ world-class oil/ service companies
Recognized by 16+ well-known Customers 10+ National Oil Companies
Company History
Vigor is always your reliable partner in the oil and gas industry.
Vigor expanded our manufacturing facilities in different locations of China which help us to serve the customers with swift delivery, diversity and efficiency of production. All our manufacturing facilities meet and exceed APl and international quality standards.
With a solid background, experiences, full support from the engineering team, and high efficiency in production, Vigor has established stable and long terms cooperation with well-known international companies from the US, Canada, Colombia, Argentina, Brazil, Mexico, Italy, Norway, UAE, Oman, Egypt, Saudi Arabia and Nigeria, Etc.
R&d Certificate
Vigor's R&D History
Vigor team has consistently prioritized investment in product research and development. In 2017, several new products developed by Vigor were successfully tested and widely promoted, with advanced technological offerings being adopted in bulk by clients on-site. By 2019, our modular disposable guns and site selection perforating series had been successfully deployed in client wells. In 2022, Vigor invested in a high-tech tool manufacturing plant to further enhance our production capabilities.
Our commitment to the R&D, production, and testing of new products remains unwavering. If you are interested in industry-leading products or technologies, do not hesitate to contact our professional technical team. We look forward to collaborating with you to advance the global energy industry.

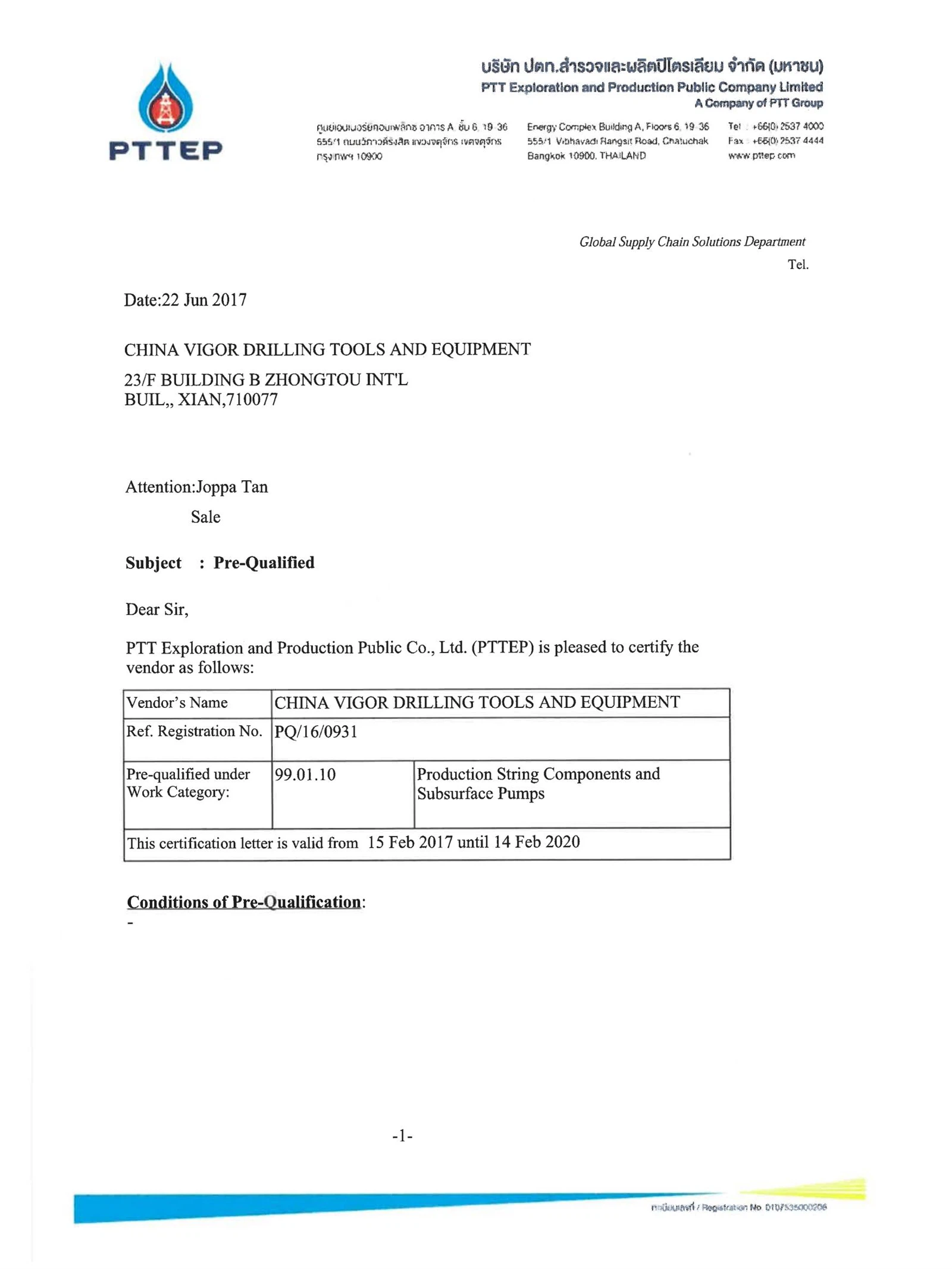

Certificate and Customer Feedback
ISO 9001

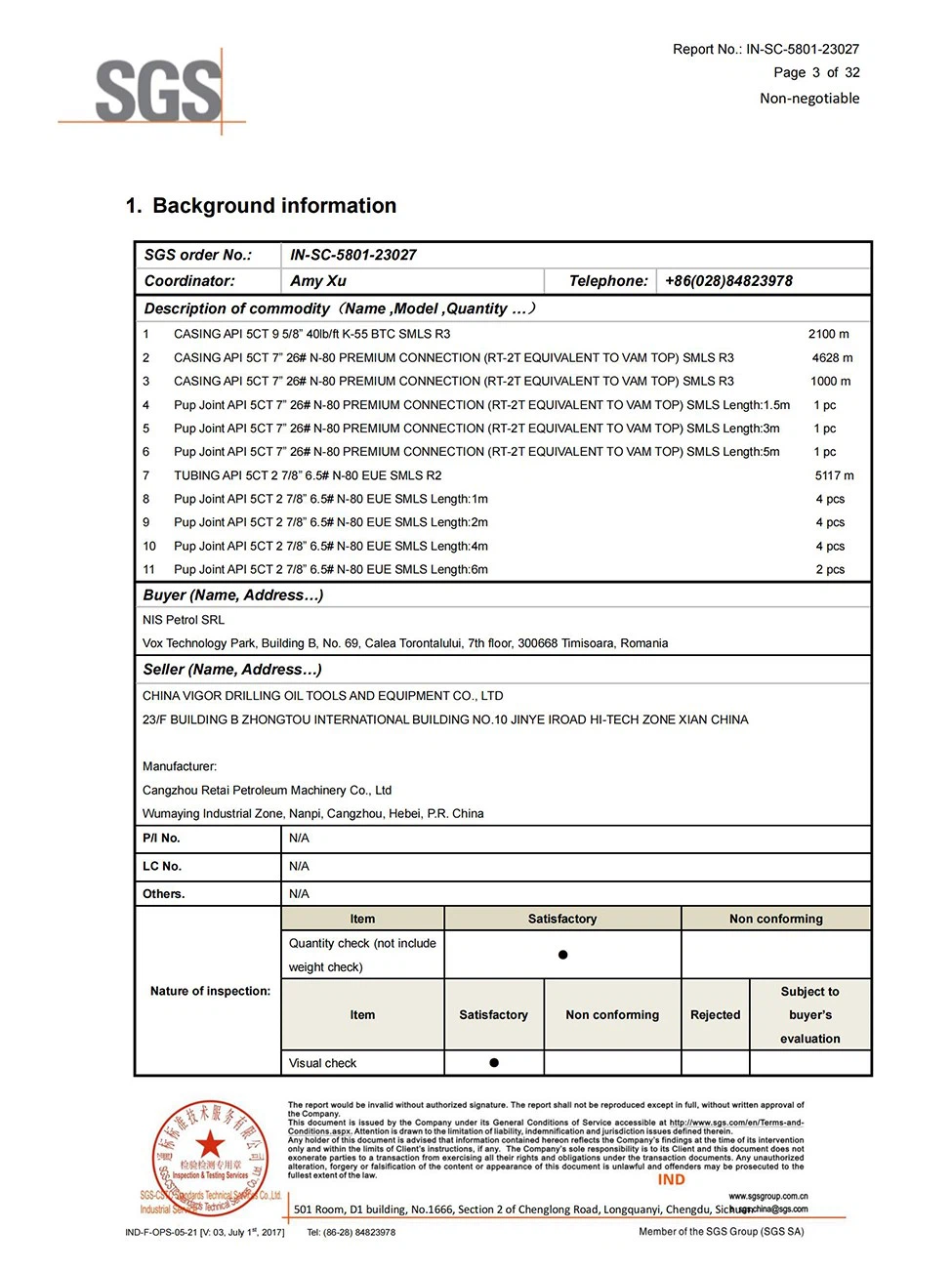

SGS
SGS

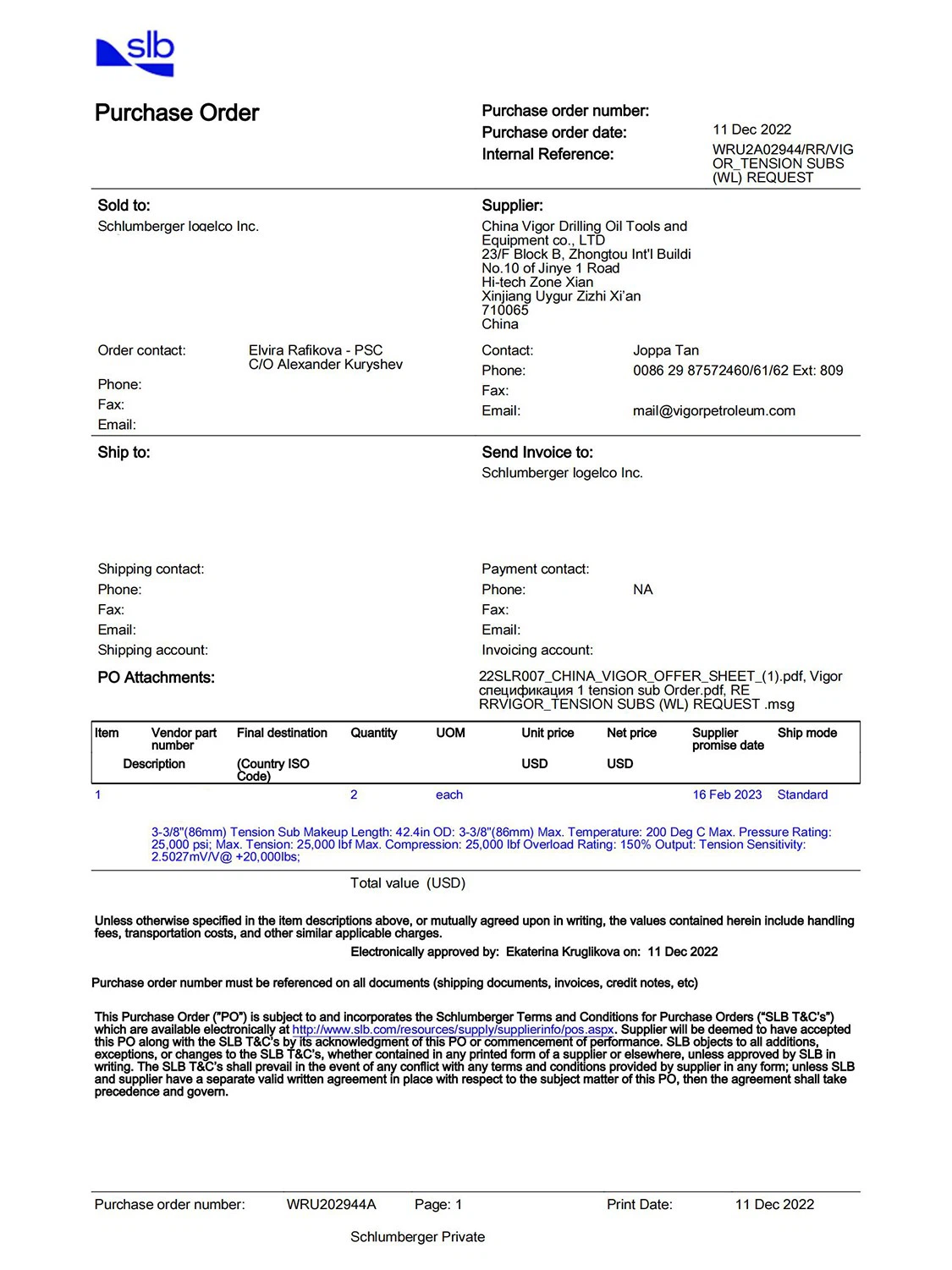

Customer PO
Customer PO

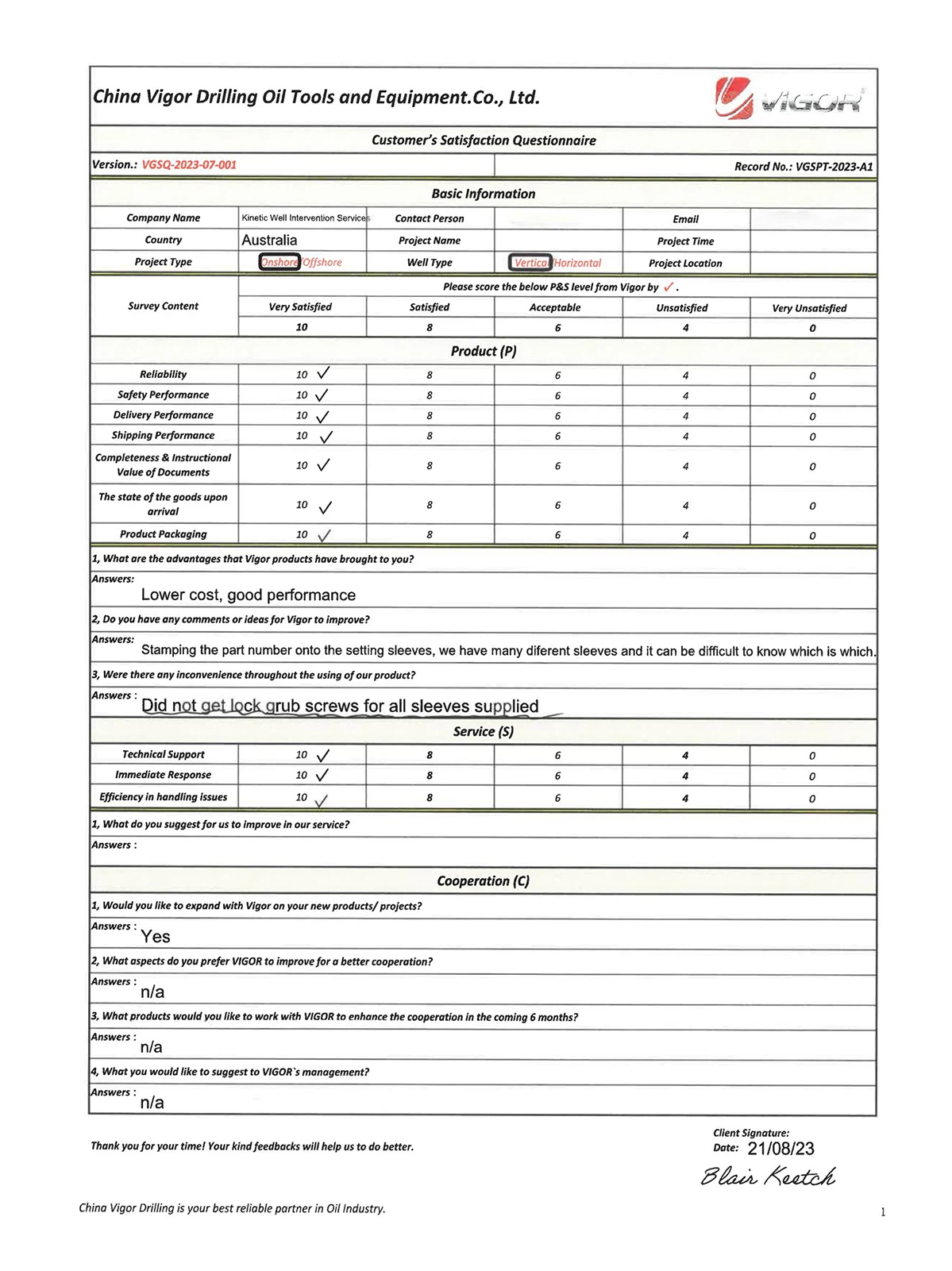

Feedback
