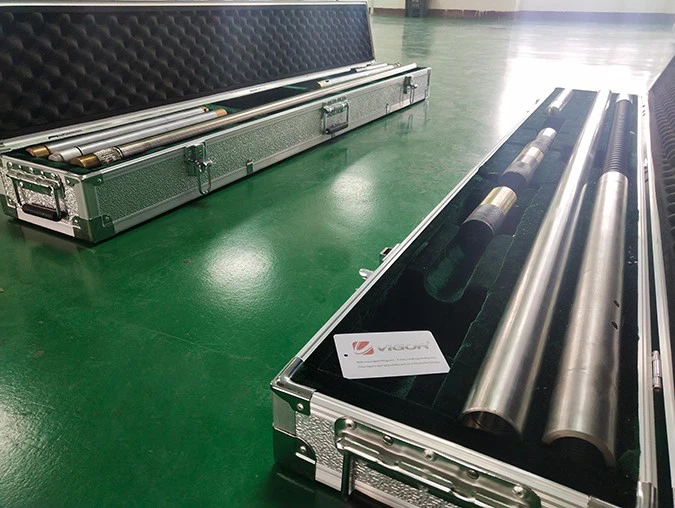

ProGuide™ Series Gyro Inclinometer
Gyro Inclinometer uses the new technology solid-state gyroscope and MEMS accelerometer, and it is a single and multi-point inclinometer with north seeking.
It can ensure that the gyro inclinometer has the advantages of small size, impact resistance, high-temperature resistance, and high measurement accuracy.
It can be used for repeated surveys of good trajectory, and directional sidetracking drilling.
Description
China Vigor Drilling Oil Tools And Equipment Co., Ltd. is one of the most professional manufacturers and suppliers of proguide™ series gyro inclinometer in China, featured by competitive price and fast delivery. Welcome to buy high quality proguide™ series gyro inclinometer in stock here from our factory.
ProGuide™ Series Gyro Inclinometer uses the new technology solid-state gyroscope and MEMS accelerometer, and it is a single and multi-point inclinometer with north seeking. It can ensure that the gyro inclinometer has the advantages of small size, impact resistance, high-temperature resistance, and high measurement accuracy. It can be used for repeated surveys of good trajectory, and directional sidetracking drilling.
Features
● Real-time measurement of GT and EHR, Offers real-time data transmission via mud pulse telemetry or wired telemetry. Enables surface personnel to monitor and analyze downhole data instantaneously, facilitating timely adjustments and optimizing drilling operations.
● High accuracy and temperature resistance, built to withstand extreme downhole conditions, with a temperature rating of up to 175°C and a pressure rating of 15,000 psi. Ensures reliable performance and accurate data acquisition in challenging environments, such as deep wells and high-pressure formations.
● ProGuide™ Series Gyro Inclinometer has lower power consumption and longer storage working time.
● Excellent impact and vibration resistance.
● Use a Solid-state gyroscope and MEMS accelerometer to deliver highly accurate inclination and azimuth measurements.
Exceeds industry standards for accuracy, providing reliable data for critical decision-making.
● Compatible with storage and real-time mode measurement.
● Friendly software operating system.
Technical parameters
● Azimuth: (0 - 360)°±1.0°
● Inclination : (0-90)°+0.1°
● Tool face: (0 - 360)°±1.5°
● Pressure rating: 140 MPa (with thermos).
● Temperature rating: 100℃, 175 ℃ (with thermos).
● Impact resistance: 100Mpa/140Mpa
● Pressure shield diameter: 38mm, 45 mm (with thermos).
● Standard"R"or"E"guide shoe.
Advantages
1. High Precision
①Surpasses industry standards by delivering measurement accuracy of better than ±0.1° for both inclination and azimuth.
②This data provides highly reliable results that meet the stringent requirements of demanding drilling operations.
③This facilitates accurate decision-making and ensures optimal wellbore placement.
2. Reliability
①This system incorporates proven technologies and robust design to guarantee exceptional operational reliability.
②This approach minimizes downtime and maintenance requirements, leading to increased productivity and cost savings.
③This system can endure harsh conditions and deliver consistent performance in challenging environments.
3. User-Friendly Interface
①The interface is user-friendly and straightforward, making it accessible to both experienced and novice users.
②This simplifies data acquisition and interpretation, reducing training requirements and maximizing efficiency.
③The controls are intuitive and the displays are clear to enhance the user experience.
4. Cost-Effectiveness
①This offers a competitive price point that provides exceptional value for investment.
②This offers substantial cost savings through reduced maintenance, increased productivity, and accurate data acquisition.
③This strategy aims to maximize the return on investment by optimizing drilling operations and minimizing NPT.
Applications of ProGuide™ Series Gyro Inclinometer
1. Directional Drilling
①Precisely measures inclination and azimuth angles to ensure the wellbore trajectory aligns with the planned path.
②Facilitates accurate steering of the drill string, enabling precise targeting of subsurface formations and avoiding costly deviations.
③ Enhances directional drilling efficiency and reduces the risk of encountering hazards such as wellbore collisions.
2. Horizontal Drilling
①Plays a critical role in maintaining a smooth and consistent wellbore trajectory in horizontal drilling.
②Provides real-time feedback on the drill string's orientation, allowing drillers to make precise adjustments and maintain the wellbore within the target zone.
③ Contributes to maximizing reservoir contact and increasing hydrocarbon recovery rates.
3. Complex Well Sections
①Offers significant benefits in challenging well sections, such as those with high angles, tortuosity, or multiple branches.
②Provides accurate downhole information that enables drillers to navigate complex trajectories safely and efficiently.
③ Reduces the risk of complications and costly delays associated with drilling in challenging environments.
By providing accurate and real-time downhole data, the ProGuide™ Series Gyro Inclinometer empowers drilling professionals to make informed decisions, optimize drilling operations, and enhance overall wellbore productivity.
VM-VSNG Vigor solid-state self-north-seeking Gyro For Mining
Product-line note: The VM-VSNG below is a mining-grade gyro inclinometer for mine shafts and underground mineral operations. It is a separate product family from the ProGuide™ oil & gas logging tools described above on this page. The ProGuide™ line targets oil & gas wells (deep wells, high pressure/temperature); the VM-VSNG line targets mining and geological boreholes. They share the gyro-inclinometer category but serve different downhole environments and customers.
Vigor offers the VM-VSNG series mining gyro inclinometer - a solid-state inclinometer launched in 2020 as the next-generation replacement for dynamically-tuned flexible and fiber-optic gyros. It integrates gyro technology, MEMS machining and embedded intelligence to deliver high accuracy, strong stability and rugged field reliability in mine shafts. Both variants share the same housing and operating principle; they differ in data mode, power source and downhole ratings - and therefore in acquisition cost and typical use case.
The VM-VSNG gyro is purpose-built for magnetic-interference environments such as mine shafts (near steel casing, rails or magnetic strata) where magnetic survey tools lose accuracy, making it ideal for underground mining borehole orientation work.
Two Variants: memory vS real-time
VM-VSNG Gyro Inclinometer (Memory) for mining
Battery-powered and fully self-contained, this variant records surveys downhole and retrieves the data after the run. It is the cost-effective option for memory surveys where a real-time link is not required, and supports an optional add-on for wired measurement.
| Parameter | Specification |
|---|---|
| Inclination | (0–70)°; (0–90)° ±0.2° |
| Azimuth | (0–360)° ±2.5° |
| Survey Time | 60 s |
| Max. Temperature | 60°C/144°F |
| Max. Pressure | 10 MPa |
| Tool O.D. | Ø38 mm |
| Power Supply | 6 × D-cell alkaline batteries (~12 h) |
| Storage Capacity | 1,800 survey points |
| Expansion | Optional wired measurement add-on |
VM-VSNG Gyro Inclinometer (Real-time) for mining
AC-powered with real-time surface readout, this variant streams data to the surface during the survey. It carries higher downhole ratings and is the premium option for operations that need live monitoring at the surface.
| Parameter | Specification |
|---|---|
| Inclination | (0–70)° ±0.2° |
| Azimuth | (0–360)° ±2.5° |
| Survey Time | 60 s |
| Max. Temperature | 70°C/158°F |
| Max. Pressure | 20 MPa |
| Tool O.D. | Ø38 mm |
| Power Supply | AC 220 V / 110 V, 50/60 Hz |
memory vS real-time
| Feature | VM-VSNG (Memory) | VM-VSNG (Real-Time) |
|---|---|---|
| Data mode | Downhole memory, 1,800 pts | Real-time surface readout |
| Power | 6 × D-cell alkaline (~12 h) | AC 220/110 V |
| Max. Temperature | 60°C/144°F | 70°C/158°F |
| Max. Pressure | 10 MPa | 20 MPa |
| Expansion | Optional wired add-on | Native wired/readout |
| Typical Use | Cost-effective memory surveys | Live surface monitoring |
Features and applications
- Compact size (Ø38 mm tool diameter)
- High measurement accuracy and good long-term stability
- Auto north-seeking (self-aligning)
- Fast 60-second survey cycle
- Impact resistant and highly reliable in harsh conditions

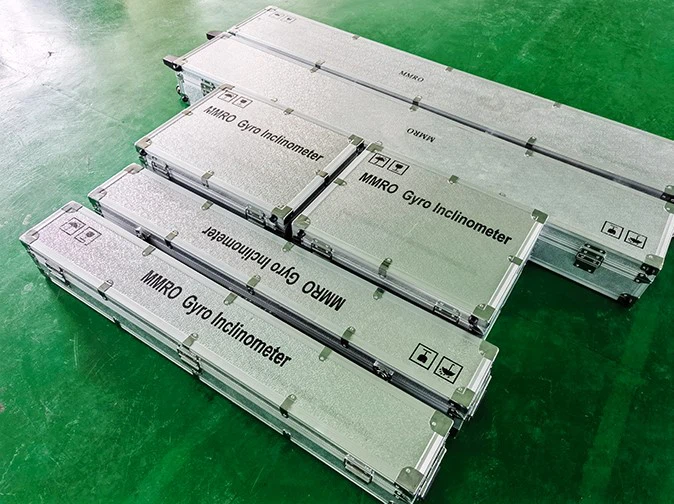

The MMRO series is intended for use inside mine shafts and underground mineral boreholes, not oil & gas wells:
- Mine-shaft casing-window orientation (sidetracking from existing casing)
- Mine borehole trajectory survey
- Cluster (multi-well pad) orientation surveys in mining fields
- Directional surveys in mine development and exploration boreholes
- Surface-readout surveys for immediate data review at the mine site
- Operations in magnetic-interference mine environments where magnetic tools fail
Frequently Asked Questions
Q: What is the difference between the VM-VSNG memory and real-time gyro inclinometers?
A: Both share the same housing and principle. The memory variant is battery-powered, records up to 1,800 points downhole and is the lower-cost option; the real-time variant is AC-powered with real-time surface data, higher ratings (70°C / 20 MPa) and a higher acquisition cost.
Q: What parameters does the VM-VSNG mining gyro measure?
A: Inclination, azimuth, tool-face angle, total gravity, earth rate and temperature - suitable for mine-shaft borehole orientation and trajectory surveys.
Q: Why use a gyro inclinometer in mine shafts instead of a magnetic tool?
A: Gyro tools are unaffected by magnetic interference, so they stay accurate inside mine shafts (e.g. near steel casing, rails or magnetic strata) where magnetic survey instruments lose reliability.
