Hydraulic Dual Line Sliding Sleeve

China Vigor Drilling Oil Tools And Equipment Co., Ltd. is one of the most professional manufacturers and suppliers of hydraulic dual line sliding sleeve in China, featured by competitive price and fast delivery. Welcome to buy high quality hydraulic dual line sliding sleeve in stock here from our factory.





Vigor Hydraulic Dual Line Sliding Sleeve is a hydraulically actuated sliding sleeve mounted in the tubing to allow selective communication between the annulus and the tubing without the need of coiled tubing or wireline intervention.

The hydraulic dual is designed for multiple cycling in high temperature high pressure applications. With its proprietary non-elastomeric high performance seal system and high performance seals, valve can handle a 5,000 psi maximum shifting differential between the annulus and the tubing. The high performance seal system allows opening and closing of the valve multiple times without loss of seal integrity.

Selectively Produce Multizone Wells

Vigor sliding sleeve separation tool allows flow from the casing and tubing annulus through an open sliding sleeve and up the production tubing while blanking off the tubing just below the sliding sleeve. This allows alternating production of two zones (isolated from each other by packers) without commingling.

When production from an upper zone is not wanted and the sliding sleeve leaks fluid between the tubing and casing annulus when closed, a packoff is isolate the zone. The sliding sleeve packoff is attached to a lock, which anchors and seals in the sliding sleeve. The packoff assembly isolates the sliding sleeve ports and prevents fluid migration between the tubing and casing annulus while allowing restricted flow up the production tubing from below.

Shift with Wireline, Coiled Tubing (CT), or Interventionless Operations

A shifting tool and wireline or CT are used to shift the sleeve open or closed. Alternatively, an external shroud can be run in the closed position while the inner sleeve is open. The shroud is sheared hydraulically with annular pressure to establish communication. Heavyweight mud can be displaced from the annulus to the tubing without a slickline or CT trip to open the sleeve. Standard slickline or CT methods are used to close the sleeve.

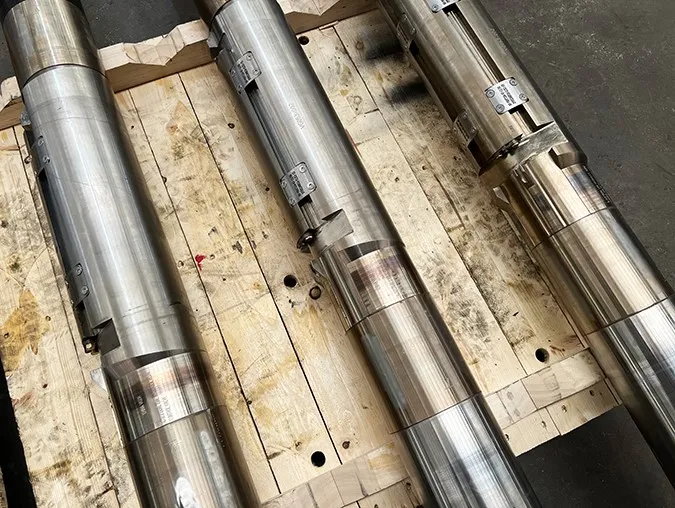

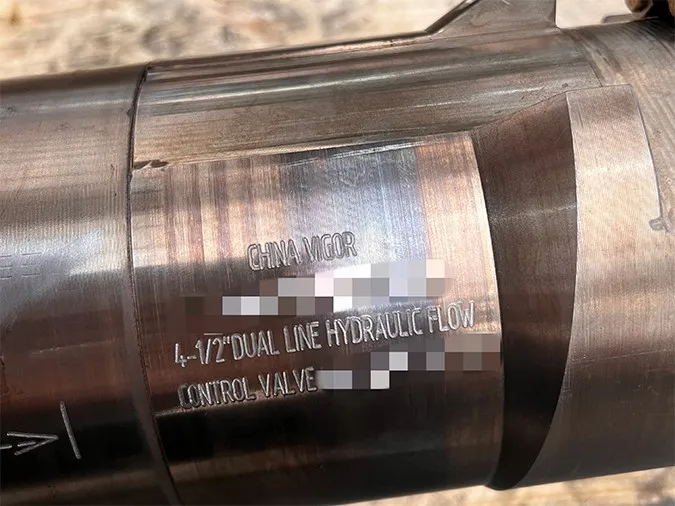

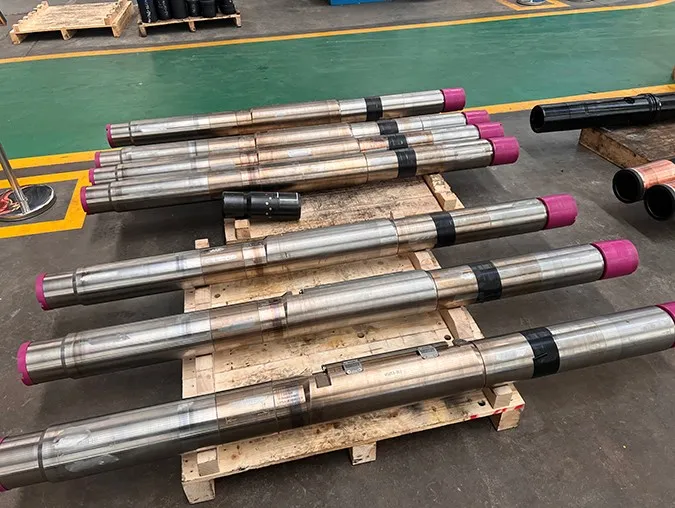

Vigor Hydraulic Dual Line Sliding Sleeve

Allows remote operation of sliding sleeve to control production. The valve will be used to control the flow of fluid from well into the tubing.

Proprietary non-elastomeric seal system allows the valve to withstand high differential pressures and has been tested to 7,500 Psi differential unloading.

Landing nipple above and seal bore below allows additional equipment to locate and seal across the Hydraulic Dual Line Sliding Sleeve if desired.

Milled slots provide a large flow area to minimize erosion but still withstand high torque, bending and tensile forces.

Proprietary threaded connections eliminates the need for O-ring sealing.

Valve will be run in well with deviation between 70-90 degree.

Maximum Dog leg severity while RIH and operating the valve is 6 deg./100ft

Maximum Reservoir Pressure is 3,000 Psi

Maximum Reservoir Temperature is 100℃

Well fluid is oil, gas and water

CO2 is present, No H2S

Technical Parameter

• Equalizing pressure between an isolated formation and the tubing string
• Zone isolation in multiple-zone wells
• Spot acidizing and fracturing
• Killing a well
• Directing the flow from the casing to the tubing in alternate or selective completions
• Interventionless fluid displacement in a heavyweight mud environment
• Tubing drainage



First HDSS installed In May 2000

Over 3000+ Application cases

28+ Countries with HDSS installations

Hydraulic interval control valves remain the most widely used HDSSs in the industry, providing a dependable solution for precise zonal control in both producer and injector wells.

• Versatile Control Options: Available in on-off and multiposition choke configurations.
• Modular and Scalable: Our hydraulic HDSSs support up to 10 discrete choke positions, offering flexible flow control for any reservoir condition.
• Advanced Electrohydraulic Control: An optional electrohydraulic module is available for remote valve actuation, integrating single or dual pressure and temperature gauges within a single compact assembly.
• Efficient Multidrop Installation: Modular valves equipped with the electrohydraulic module require only two hydraulic control lines and one electric line for streamlined installation.

With a proven design and a global track record of performance, Vigor hydraulic HDSSs continue to deliver reliable production control in a wide range of well environments.
