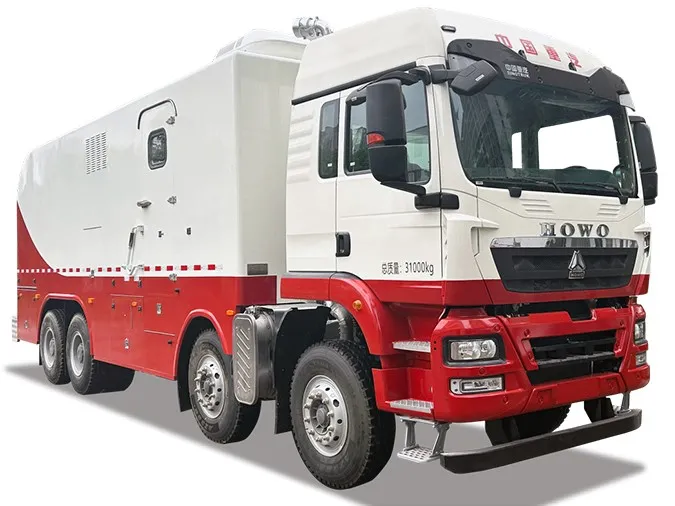

Vigor Hydraulic Logging Truck
The Oil Well Logging Truck is an essential tool in the oil and gas industry, sprecifically designed for conducting well logging operations.
This versatile vehicle is equipped with advanced technology to measure various geological and geophysical parameters within oil wells.
It plays a crucial role in both exploration and production phases of oilfield operations.
Description
China Vigor Drilling Oil Tools And Equipment Co., Ltd. is one of the most professional manufacturers and suppliers of vigor hydraulic logging truck in China, featured by competitive price and fast delivery. Welcome to buy high quality vigor hydraulic logging truck in stock here from our factory.
Vigor Hydraulic Logging Truck is designed for logging, perforation, and related operations in oil, gas, and water wells, offering equipment for depths of 5,000 to 15,000 meters. It efficiently acquires downhole data, reducing operational time and cost.
Equipped with high-precision instruments and advanced control systems, it ensures accurate parameter measurement for reliable exploration support.
The truck provides excellent mobility between well sites and can be adapted to various tasks and environments. Safety is integral to its design, ensuring secure and stable performance throughout all operations.
Features
|
Strong Anti-Interference Performance |
High-strength anti-magnetization drums are adopted,with a relative permeability of ≤1.1,ensuring accurate and reliable test data. |
|
Diversified Winch Modes |
Single-drum,double-drum,and winch structures with or without chains can be provided to meetusers' diverse needs. |
|
Precise Speed Control |
The winch transmission system adopts electro-proportional control technology.Through variable fine-tuning,it realizes a wide-range speed adjustment of 20~10,000 m/h,featuring high speed control precision and good stability,which is suitableforvarious complexlogging working conditions. |
|
High Safety and Reliability |
The winch is equipped with triple safety protections,including neutral parking, manual braking,and emergency braking,ensuring reliable equipment operation. |
Technical Parameter
|
Characteristic/Type |
5,000m Type |
7,000m Type |
10,000m Type |
12,000m Type |
|
Drum Cable Capacity (φ12.7mm Cable) |
5,500m |
7,500m |
10,700m |
12,000m |
|
Max. Operating Depth |
5,000m |
7,000m |
10,000m |
12,000m |
|
Max. Lifting Load |
50kN |
65kN |
85kN |
95KN |
|
Cable Operating Speed |
20-10,000m/h |
|||
|
Winch Drive Mode |
Hydraulic Drive |
|||
|
Structure Type |
Chassis and drums with different cable capacities can be customized according to requirements. |
|||
Functions and Applications
- Measurement of Geological Parameters
The logging truck is capable of measuring a variety pf physical, chemical, and electromagnetic information from the subsurface strata, such as formation resistivity, acoustic travel time, natrual gamma-ray intensity, borehole diameter, and borehole inclinaiton angle. These parameters are of great significance for understanding the structure, lithology, porosity, and permeability pf the underground rock layers, and they help to determine the presence of oil and gas in the strata, as well as the reserves and distribution of these hydrocarbons
- Assessment of Oil Well Conditions
It can be used to measure parameters such as the downhole pressure, temperature, and fluid level of oil wells. Additionally, it can perform downhole operations like bottom-hole sampling, sand detection, and fishing, thereby assenssing the production capacity and health of the oil well and providing a basis for the development and management of the well
- Assistance in Exploration and Development
During the petroleum exploration process, the logging truck provides important data for determining the location, size, and development plan of oil and gas reservoirs by measuring various geological parameters. In the oilfield development stage, it can be used to monitor the production dynamics of oil wells, optimize the exploitation plan, and increase the recovery rate
