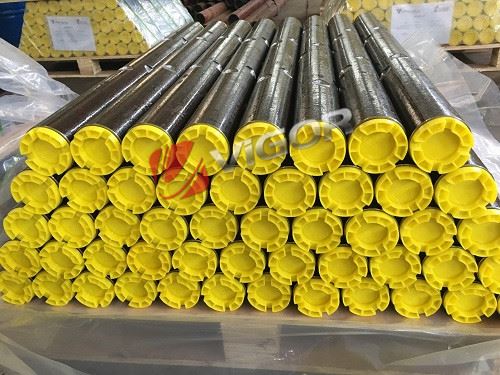

China Vigor Perforating Guns are made of high-strength alloy steel tube, with the features of good mechanical performance, resistance to high temperature and pressure, the length, phasing degree, shot density and etc are all available as you requested.
We have the regular Scalloped Hollow Perforating gun on sizes 2 3/4”, 3 1/8”, 3 3/8” 6SPF 60 Degree 20” and 2FT.
The vigor team is always around for full-range service and support. For other sizes, like 1-11/16”, don't hesitate to get in touch with us for more details.
Vigor main Hollow Carrier Perforation Gun for
• Tubing Conveyed Perforating (TCP)
• Wireline Conveyed Perforating ( WCP )
• Customized solution available
Features:
High-strength alloy steel
High precision
High temperature and pressure resistant
Unique internal structure design to provide superior perforating
Compatible with industry-standard charges and subs
Configurations: Scalloped, Slick, WCP & TCP
Different options on length, phasing degree, and shot density
OEM service is available
Perforating Gun systems and Accessories are available: Including Tandem Sub, Top Sub, Firing Head, Addressable Switch, and Control Panel
Technical Parameter：
No. | Vigor Serial No. | O.D. | SPF | Phasing | Length | Conveyed Mode |
1 | V1916 | 1-9/16" | 4 SPF 6 SPF | 0°60°90°120°180° 0°60°180° | As required. | WCP or TCP |
2 | V2000 | 2" | 4 SPF 6 SPF | 0°60°90°120°180° 0°60°180° | WCP or TCP | |
3 | V212 | 2-1/2" | 4 SPF 6 SPF | 0°60°90°180° 0°60° | WCP or TCP | |
4 | V234 | 2-3/4" | 4 SPF 6 SPF | 60°90° 60° | WCP or TCP | |
5 | V278 | 2-7/8" | 4 SPF 6 SPF | 60°90° 60° | WCP or TCP | |
6 | V318 | 3-1/8" | 4 SPF 5 SPF 6 SPF 8 SPF 12 SPF | 0°60°90°180° 0°180° 0°60° 135/45° 140/20° | WCP or TCP | |
7 | V338 | 3-3/8" | 4 SPF 5 SPF 6 SPF 8 SPF 12 SPF | 0°60°90°180° 0°180° 0°60° 135/45° 140/20° | WCP or TCP | |
8 | V4000 | 4" | 4 SPF 6 SPF 8 SPF | 90° 60° 135/45° | WCP or TCP | |
9 | V412 | 4-1/2" | 4 SPF 5 SPF 6 SPF 8 SPF 12 SPF 16 SPF | 90° 60° 60° 135/45° 135/45° 140/20° | WCP or TCP | |
10 | V458 | 4-5/8" | 4 SPF 5 SPF 6 SPF 8 SPF 12 SPF 16 SPF | 90° 60° 60° 135/45° 135/45° 140/20° | WCP or TCP | |
11 | V518 | 5-1/8" | 12 SPF 16 SPF | 135/45° 135/45° | WCP or TCP | |
12 | V7000 | 7" | 12 SPF | 135/45° | WCP or TCP |
3-1/8 in (79mm) 6SPF 60 Deg. Scalloped Perforating Gun
Item | Description | |||
Gun Body Material | Hot Finished Seamless Steel | |||
Tubing Gun Body Configuration | Threaded & Scalloped | |||
Charge Tube Type | Round Steel Tube | |||
Type of Tandem Connection | Booster to Booster | |||
O-ring Material | Nitrile-90 Durometer or Viton-95 Durometer | |||
O-ring Size | O-Ring AS-230 | |||
Typical Length | 2 ft | 2.5 ft | 3 ft | 4 ft |
Shot Total | 6 | 9 | 12 | 18 |
Phasing | 60 degree | |||
Nominal O.D. | 3.125 in (79.375mm) | |||
Nominal Thickness | 0.313 in(7.95mm) | |||
Drift Dia. | 2.450 in | |||
Pressure Rating | 22000 psi (151.5MPa) | |||
Typical Gun Swell at Ambient Liquid 22.7g | 3.35 in (85.09mm) | |||
Typical Gun Swell at Ambient Gas 19.0g | 3.38 in (85.85mm) | |||
Min. Recommended Restriction | 3.59 in (91.2mm) | |||
Gun End to First Scallop Distance | 7.2 in (182.8mm) | |||
Tensile Strength | 215000lbf (956KN) | |||
Thread | 2-3/4’’-6ACME-2G | |||
3-3/8 in (86mm) 6SPF Scalloped Perforating Gun
Item | Description | |||
Gun Body Material | Hot Finished Seamless Steel | |||
Tubing Gun Body Configuration | Threaded & Scalloped | |||
Charge Tube Type | Round Steel Tube | |||
Type of Tandem Connection | Booster to Booster | |||
O-ring Material | Nitrile-90 Durometer or Viton-95 Durometer | |||
O-ring Size | O-Ring AS-230 | |||
Typical Length | 2 ft | 2.5 ft | 3 ft | 4 ft |
Shot Total | 6 | 9 | 12 | 18 |
Phasing | 60 degree | |||
Nominal O.D. | 3.375 in (85.725mm) | |||
Nominal Thickness | 0.375 in(9.525mm) | |||
Drift Dia. | 2.550 in | |||
Pressure Rating | 22000 psi (151.5MPa) | |||
Typical Gun Swell at Ambient Liquid 22.7g | 3.35 in (85.09mm) | |||
Typical Gun Swell at Ambient Gas 19.0g | 3.38 in (85.85mm) | |||
Min. Recommended Restriction | 3.59 in (91.2mm) | |||
Gun End to First Scallop Distance | 7.20in (177.8mm) | |||
Tensile Strength | 215000lbf (956KN) | |||
Thread | 2-3/4’’-6ACME-2G | |||
