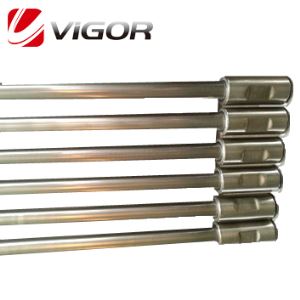

Polished Rod
China Vigor’s Polished Rod is produced with API Specification 11B, polished rods are available for different material grade option such as AISI 1045,AISI 4140, AISI 8620, SS431 etc,AISI 1045 with hard metal spraying also available.
Description
China Vigor's Polished Rod is manufactured from high-quality alloy steel, which has high tensile strength, smooth surface, and long service life, the Rod is produced with API Specification 11B, and they are available for different material grade options such as AISI 1045, AISI 4140, AISI 8620, SS431 and AISI 1045 with hard metal spraying also available.
China Vigor's Polished Rod with an optimal surface finishing to ensure an appropriate sealing in the stuffing box, rods, and couplings are furnished with cold-formed fully rolled threads. China Vigor's products are available for different material grade options such as AISI 1045, AISI 4140, AISI 8620, SS431, etc. The SS431 polish rod's minimum tensile strength is 793Mpa, on the corrosion resistance and torque strength it also has better performance than AISI 1045 or AISI 4140, it's ideally suited for use with Drive Rods in Progress Cavity Pump(PCP) application. China Vigor Drilling provides diameters of 1-1/8" through 1-3/4″ with length from 8' to 42′.
Products Description
|
Type |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
Mo |
|
1045 Piston Steel |
0.43-0.50 |
0.60-0.90 |
0.25 max |
0.040 max |
0.050 max |
/ |
/ |
/ |
|
4140 Alloy Steel |
0.38-0.43 |
0.75-1.00 |
0.20-0.35 max |
0.035 max |
0.040 max |
0.80-1.10 |
/ |
0.15-0.25 |
|
8620 Norloy Steel |
0.18-0.23 |
0.70-0.90 |
0.15-0.35 max |
0.035 max |
0.040 max |
0.40-0.70 |
0.40-0.70 |
0.15-0.25 |
|
431 Stainless Steel |
0.20 max |
1.0 max |
1.0 max |
0.040 max |
0.030 max |
15.0-17.0 |
1.25-2.50 |
/ |
Key Features
Polished Rod is available for different material grade options such as AISI 1045, AISI 4140, AISI 8620, SS431, etc, AISI 1045 with hard metal spraying is also available.
(1) Corrosion Resistance: Crafted from high-strength materials to withstand corrosive downhole conditions.
(2) Optimized Dimensions: Standardized dimensions for seamless integration into rod pumping systems.
(3) Friction Reduction: A polished surface finish minimizes friction, enhancing overall efficiency.
(4 )High Durability: Engineered to withstand dynamic forces for prolonged operational life.
Product Details
The polish rod has identical sucker rod threads on both ends, with the rod body diameter larger than the maximum outer diameter of the threads on both ends. Its characteristics are that both ends are interchangeable. When one end is severely worn down, the rod can be flipped to continue using.
The upset sucker rod has one upset end with sucker rod threads machined on it, while the other end does not have an upset and is machined with regular threads instead. Its feature is good connectivity performance with the upset threads, but the two ends cannot be interchanged.
Like sucker rods, polish rods are also divided into grades C, D, H, and K for four levels according to different strength and application requirements.
It is made of high-quality alloy steel cold drawn round steel, featuring high strength, good toughness, smooth surface and long service life.
Function
Its primary function is to transmit reciprocating motion from the downhole pump to the surface pumping unit, a fundamental process in rod pumping systems widely employed in the oil and gas sector. Its polished surface serves the crucial purpose of minimizing friction, reducing wear on the rod, and enhancing the overall efficiency of the pumping system. The robust construction of the rod ensures it can withstand the dynamic forces associated with oil extraction, contributing to a longer operational lifespan.
Applications
(1) Articulation: It can be used in articulation systems, similar to drilling equipment, where it can give smooth and precise movement of the drill string.
(2) Rock drilling: It can be used in gemstone drilling operations, similar to coring and drilling, where it can help to reduce the disunion between the drill bit and the gemstone, allowing for smoother and more effective drilling.
(3) Well-completion: It can be used in well-completion operations, similar to hydraulic fracturing, where it can help to ameliorate the effectiveness of the operation by reducing the disunion between the fluid and the wellbore.
(4) Workover operations: It can be used in workover operations, similar to wedged pipe recovery, where it can help to ameliorate the effectiveness of the operation by reducing the disunion between the drill string and the wedged pipe.
As a dedicated manufacturer serving the oil and gas industry, our company takes pride in offering a Polished Rod that aligns with industry standards and exceeds performance expectations. With a substantial inventory, comprehensive certifications, prompt delivery, secure packaging, and support for rigorous inspections, we stand as a trusted partner for discerning procurement specialists and global distributors within the oil and gas sector.
