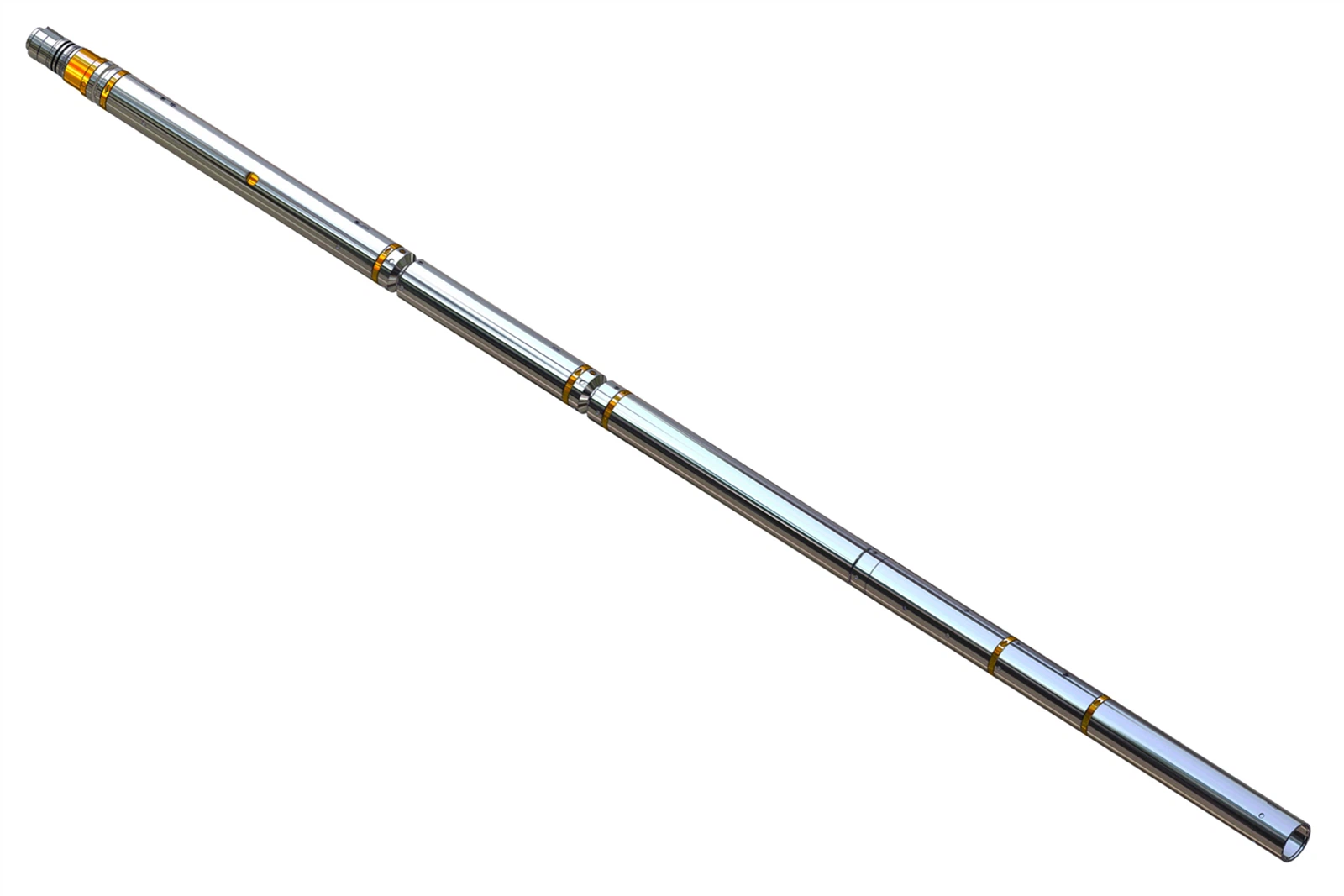

Vigor Smart Drilling Jar (VSDJ)
Vigor Smart Drilling Jar (VSDJ) is designed based on the hydraulic jar. A surface software and downhole acquisition circuit were developed, which has the functions of real-time tension monitoring, jar action feedback and adjustable unlocking force, realizing visualization and controllability of jarring. The purpose is to better monitor the working effect and the downhole working conditions in real time method.
Description
Vigor Smart Drilling Jar (VSDJ) is designed based on the hydraulic jar. A surface software and downhole acquisition circuit were developed, which has the functions of real-time tension monitoring, jar action feedback and adjustable unlocking force, realizing visualization and controllability of jarring. The purpose is to better monitor the working effect and the downhole working conditions in real time method.
Features
- Jarring is triggered once the tools get stuck and the cable tension reaches the unlocking force.
- The unlocking force is adjustable, suitable for different tension.
- The unlocking force can be adjusted remotely by the surface system in real time.
- Downhole tension is with high accuracy and can be monitored in real time.
- Real-time feedback on the jarring action can be provided.
- Multiple jarring to improve unfreezing rate when tools getting stuck.
Products Description
|
SPECIFICATIONS |
|||
|
Smart Jar Type A |
Smart Jar Type B |
Smart Jar Type C |
|
|
Max. Working Temperature |
175 ℃ |
||
|
Max. Working Pressure |
140 MPa |
||
|
Impact Force |
4 times of the unlocking force |
||
|
Reset Time |
≦ 60s |
||
|
Tool O.D. |
φ73/φ76/ φ89/ φ92 mm (2.87/3/3.5/3.62 In.) |
||
|
Unlocking Force |
1.3-2.1 t (2860-4620 lbf) |
||
|
Tension Accuracy |
± 50 kgf (110 lbf) |
||
|
Stroke |
102 mm (4 In.) |
||
|
Tool Weight |
85 kg (187 lbs) |
||
|
Tool Length |
3150 mm (124 In.) |
3170 mm (124.8 In.) |
|
|
Unlocking Force Adjustment |
Surface Loop Coil |
Remote Adjustment |
Surface Loop Coil |
|
Measured Parameters |
Tension, Temperature |
Tension, Temperature, Resistivity |
|
|
Position for Connection |
Under remote sensor |
Under cable head |
|
|
Cable Type |
31 cores |
20 cores |
|
|
Insulation Performance |
500 MΩ @ 500 VDC |
||
