Pup Joint
● Standard: API 5CT 10th Edition
● Specification: From 0.75”to 20”
● Grade: H40, J55, K55, N80, L80, C90, T95, P110, C110, Q125
● Connection: EU, NU, SC, LC, BC, and premium thread, Pin * Pin, Box*Pin.
Description
Pup joint is a non-standard length of piping used to adjust the height of full-length tubing, drill pipe, line pipe, or casing strings. Strings of pipe are assembled with standard-length tubular goods that are typically 31 feet in length. As the drill string, production tubing, or casing is lowered into the well bore a joint is added to the pipe string in order to adjust the length of the string to its exact requirements.
They are offered in either two or five-foot increments with custom lengths available on request. They are distinguished by the type of piping they are used with such as casing joints, tubing joints, or drill pipe joints. They are also distinguished by the nominal outside diameter of the pipe itself ranging from ¾" to 20" or more dependent on the type of tubular goods they mate with.
Pup Joint by Vigor - Your Optimal Source for Oilfield Tubulars
Vigor provides a comprehensive range of pup joint that comply with API 5CT specifications and are tailored for oil and gas drilling and production applications.
(1)We offer a variety of grades including H40, J55, K55, N80, L80, C90, T95, P110, C110, Q125 and 13Cr to suit different strength and performance requirements.
(2)Our product offering covers tubing and casing joints to suit different downhole requirements.
(3)We supply API casing and tubing joints that are manufactured according to API Spec 5CT using prime API monogrammed, seamless oil country tubing.
Tubing type
|
Outside Diameter |
0.75 to 4.5 inches nominal size O.D. |
|
Weight |
Standard or Heavy Wall |
|
Lengths |
2,3,4,6,8,10,12 ft (with other lengths available upon request) |
|
Grades |
J-55, N-80, N-80Q & T, L-80, P-110 |
|
Connections |
EUE, NUE, Buttress, and Premium Connections of leading manufacturers are available. |
Casing type
|
Outside Diameter |
0.75 to 4.5 inches nominal size O.D. |
|
Weight |
Standard or Heavy Wall |
|
Lengths |
2,3,4,6,8,10,12 ft (with other lengths available upon request) |
|
Grades |
J-55, N-80, N-80Q & T, L-80, P-110 |
|
Connections |
EUE, NUE, Buttress, and Premium Connections of leading manufacturers are available. |
(4) Premium joints are also available with premium connections and in API or exotic alloy grades.
(5) Our products are manufactured from high-strength grades such as L80 till Q125 and are available in all common EUE, NUE, BTC, and STC connections.
(6) Diameter offerings range from small 2 7/8" joints for well servicing operations to 20" used in large diameter conductor and surface casing strings. We stock a vast range of commonly used sizes like 3 1/2" EUE and NUE joints for fast delivery.
(7) Lengths can be customized as per customer specifications, from just a few inches to over 10 feet. We also supply specialty products like OCTG and expansion joints. Our facilities allow modification of O.D., I.D., length, coating, and threading based on application requirements.
Our products are designed to withstand the loads, stresses, pressures, and temperatures experienced in drilling, completion, and production applications. The material grade, wall thickness, and length can be engineered for specific well conditions and parameters.
Quality Control

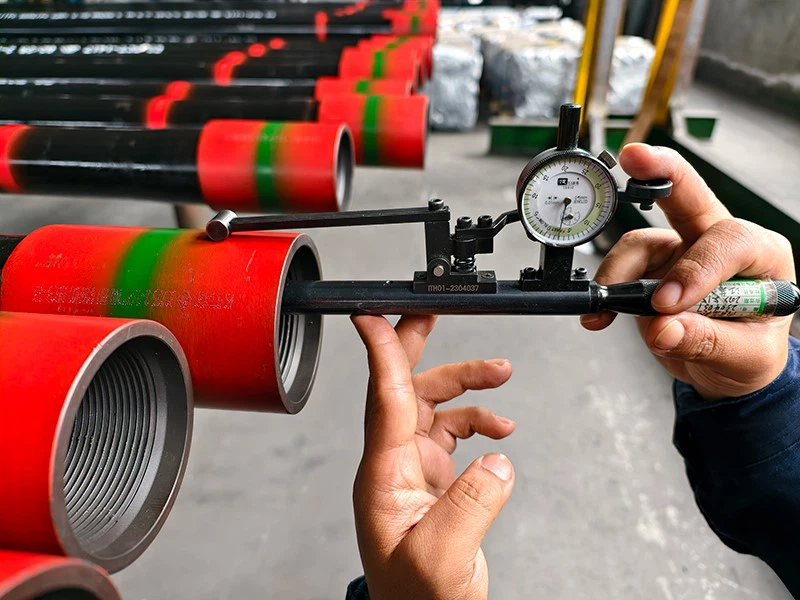

Vigor implements strict quality control procedures throughout the manufacturing and testing process. All joints are visually and dimensionally inspected, followed by hydraulic pressure tests and NDT inspection to validate integrity. Our pup joint is properly coated, marked, and shipped with complete mill certificates.
We ensure quick turnaround and maintain ample stocks to meet urgent delivery requirements. Our products are carefully packaged for protection during transportation to the wellsite.
FAQ
Q: Can Vigor provide it with License Connection?
Q: Except for tubing & casing Joint, can Vigor provide Drill Pipe Joint?
Q: Can Vigor provide Perforated Joint?
Delivered Products
Vigor understands the importance of proper packaging to ensure safe delivery of joints worldwide. All of our products are individually coated and wrapped in protective plastic sheeting before being loaded systematically into 20ft ISO containers. We utilize sturdy wooden runners between layers to prevent movement and damage during transport. For larger diameter or heavyweight joints, we construct custom timber cradles padded with foam or other resilient materials. The loaded containers are sealed and locked to prevent tampering.
Once ready for shipment, we oversee the process carefully and track the containers until they reach our customers' facilities.
